SOLC-105-02-S-Q-LC
Board-to-Board Connectors
SOLC-105-02-S-Q-LC

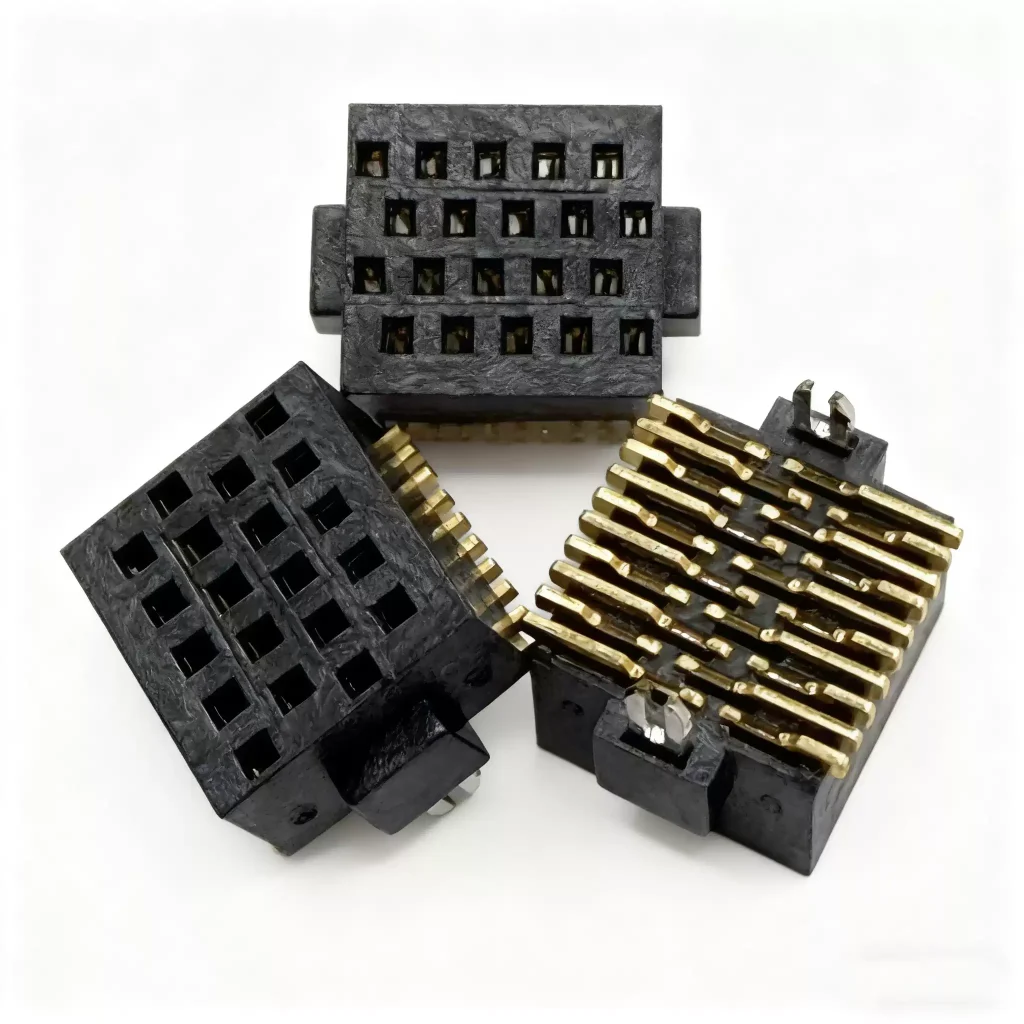

The alternative product for SOLC-105-02-S-Q-LC is WSOLC-4X5H02SQLC.It is a replacement for SAMTEC SOLC-105-02-L/F/S-Q-LC-K-TR, a 1.27 mm pitch, 4-row, 20Pin female socket connector, featuring heat resistance and cold resistance.
Connector Series: WSOLC
Connector Pitch: 1.27mm
Rows: 4
$3 $2.5
In Stock (2042)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model SOLC-105-02-S-Q-LC
Connector Type Terminal
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 30μin（0.76μm）
Packaging Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～150℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
