SOLC-110-02-F-Q-A
Board-to-Board Connectors
SOLC-110-02-F-Q-A

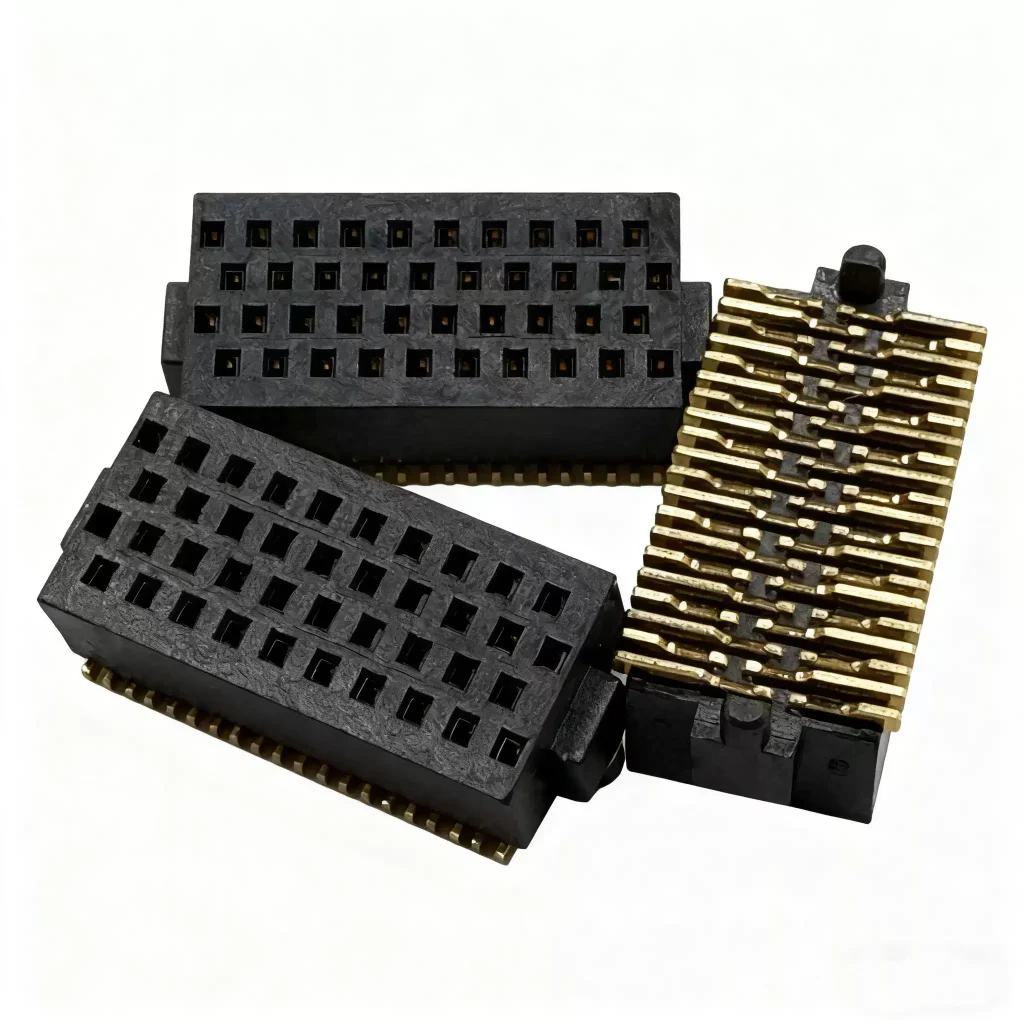

The alternative product for SOLC-110-02-F-Q-A is WSOLC-4X10H02FQA.This is a board-to-board connector, corresponding to the female socket SOLC-110-02-L/F/S-Q-A-K-TR. It adopts a 1.27mm pitch, 4-row, 40Pin design, with heat resistance and cold resistance.
Connector Series: WSOLC
Connector Pitch: 1.27mm
Rows: 4
$4.6 $4
In Stock (1200)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model SOLC-110-02-F-Q-A
Connector Type Terminal
Connector Series WSOLC
Connector Pitch 1.27mm
Terminal Interface Through-Hole, Vertical (DIP)
Orientation Vertical
Material / Metal Phosphor Bronze
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 3μin（0.076μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
