TOLC-120-12-S-Q-A
Board-to-Board Connectors
TOLC-120-12-S-Q-A

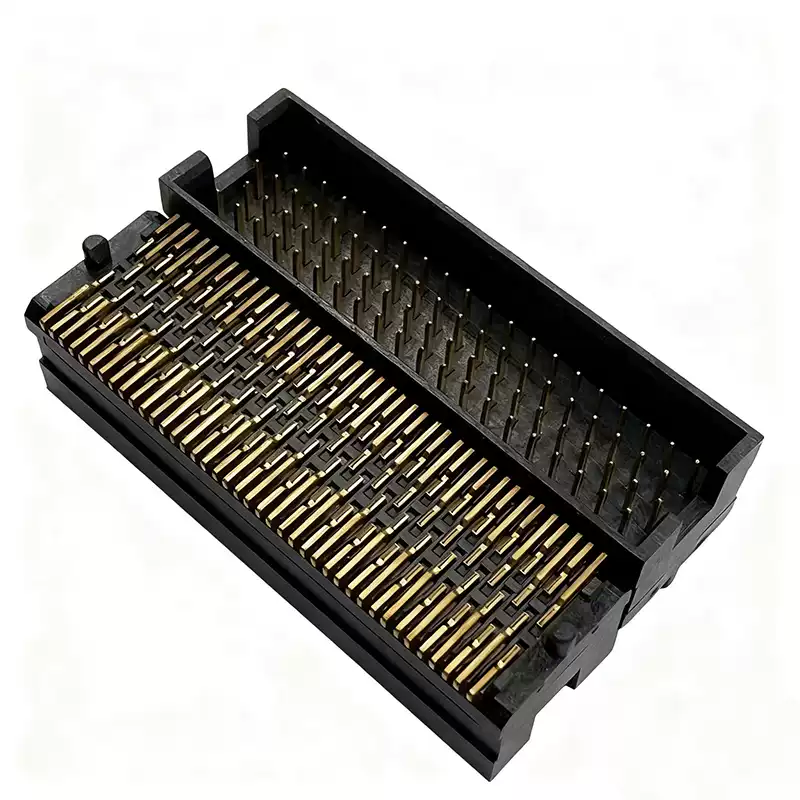

The replacement for TOLC-120-12-S-Q-A is WTOLC-4X20H12SQA.It is an SMT surface-mount male connector, model TOLC-120-12-L/F/S-Q-A-K. With a 1.27mm pitch, 4 rows and 80 pins, this connector supports high and low frequency transmission, and features heat resistance, cold resistance, excellent plugging durability and oxidation resistance.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$6.1 $5.6
In Stock (1720)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TOLC-120-12-S-Q-A
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 30μin（0.76μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
