TOLC-125-12-L-Q-LC

Home > Board-to-Board Connectors > TOLC-125-12-L-Q-LC
TOLC-125-12-L-Q-LC
Board-to-Board Connectors
TOLC-125-12-L-Q-LC

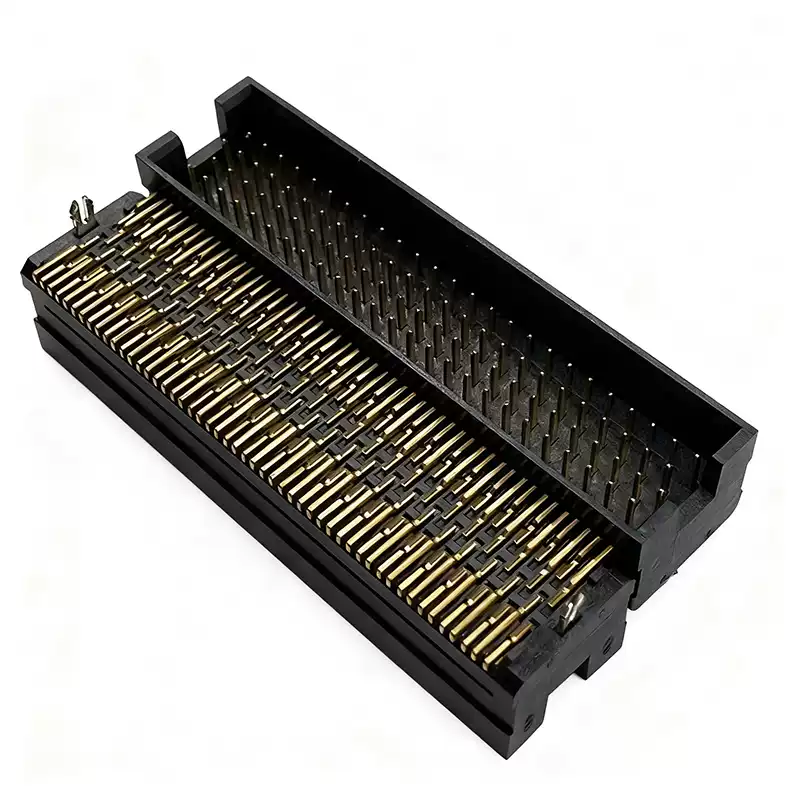

The replacement for TOLC-125-12-L-Q-LC is WTOLC-4X25H12LQLC.This is an SMT surface-mount male connector, model TOLC-125-12-L/F/S-Q-LC-K. It has a pitch of 1.27mm, 4 rows and 100 pins. The connector is suitable for high and low frequency signals, and features heat resistance, cold resistance, high plugging endurance and anti-oxidation performance.
Connector Series: WTOLC
Connector Pitch: 1.27mm
Rows: 4
$7.6 $7.2
In Stock (1735)
DownloadPDF Product message
Basic Information
Category Board-to-Board Connectors
Model TOLC-125-12-L-Q-LC
Connector Type Terminal
Connector Series WTOLC
Connector Pitch 1.27mm
Terminal Interface Surface Mount (SMD)
Orientation Vertical
Material / Metal High Copper Alloy (for pins/contacts)
Rows 4
Color Black
Rated Voltage (VAC/VDC) Other
Rated Current per Contact (Max.) (A) 2～3A
Plating Gold Plating (Au)
Plating Thickness 10μin（0.254μm）
Packaging Tape and Reel
Insulation Diameter (mm) Other
Wire Gauge (AWG) Other
Operating Temperature -55℃～125℃
Number of Circuits Other
Accessory Products

No accessories found.

Product Dimension
Dimension image will be displayed here
